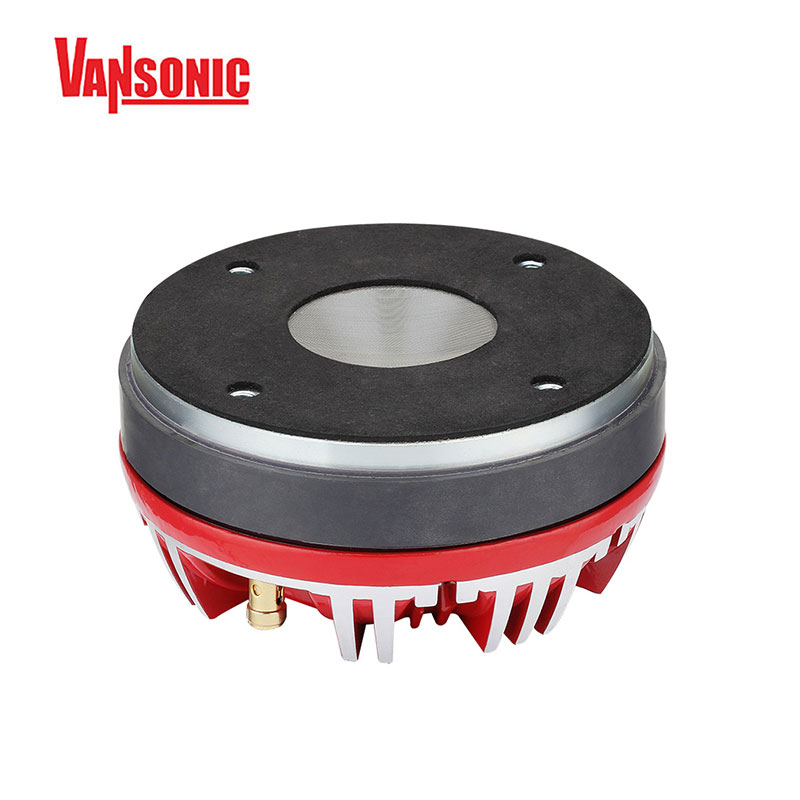

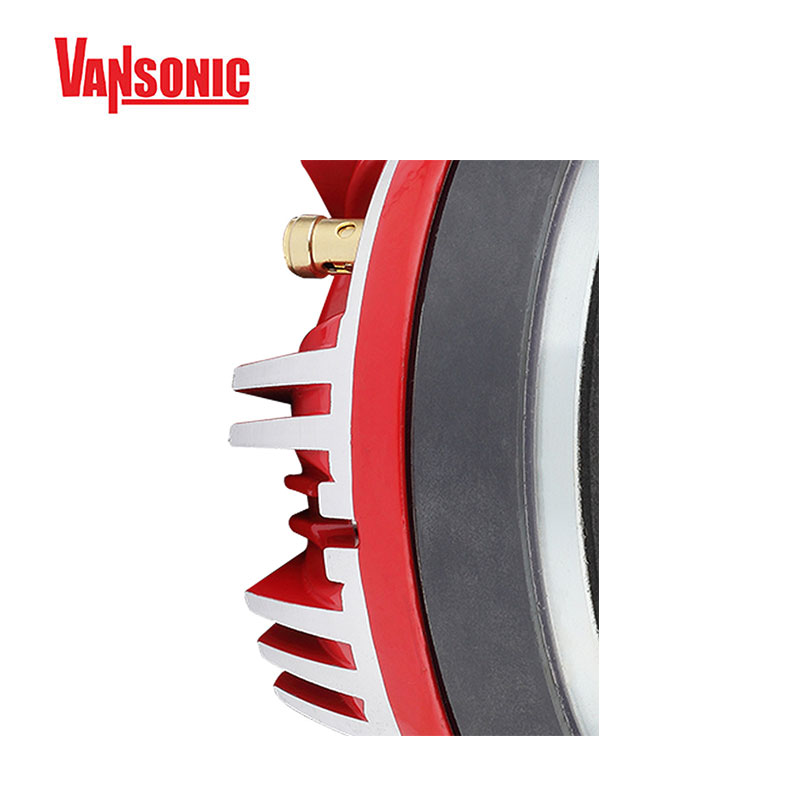

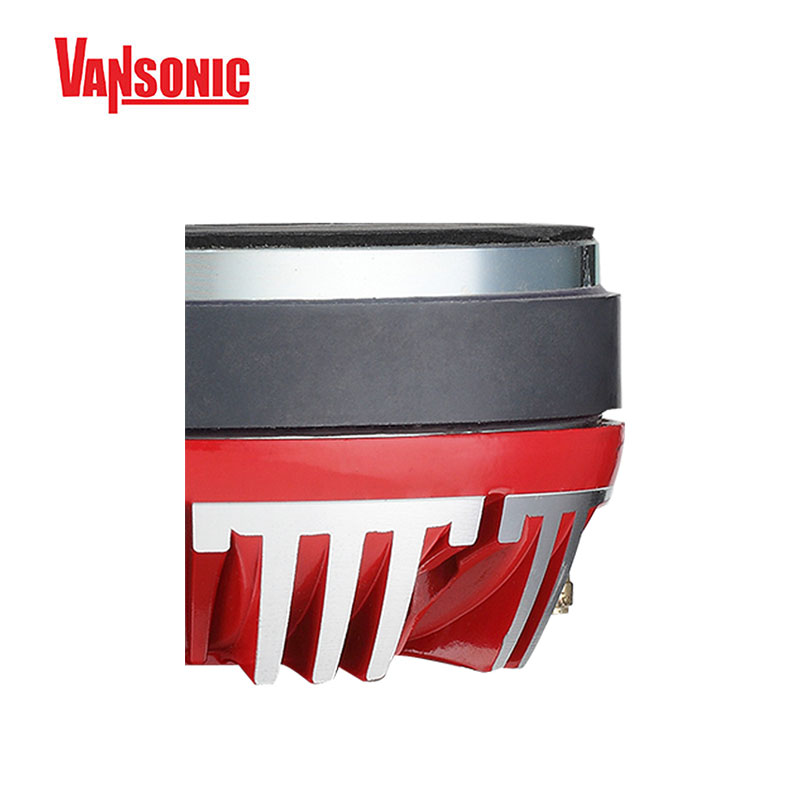

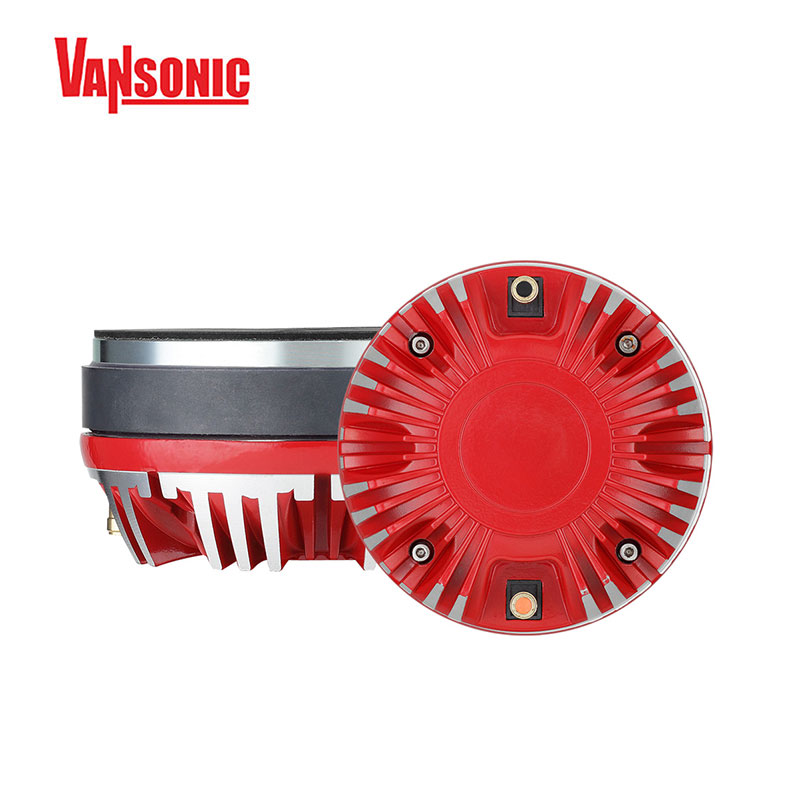

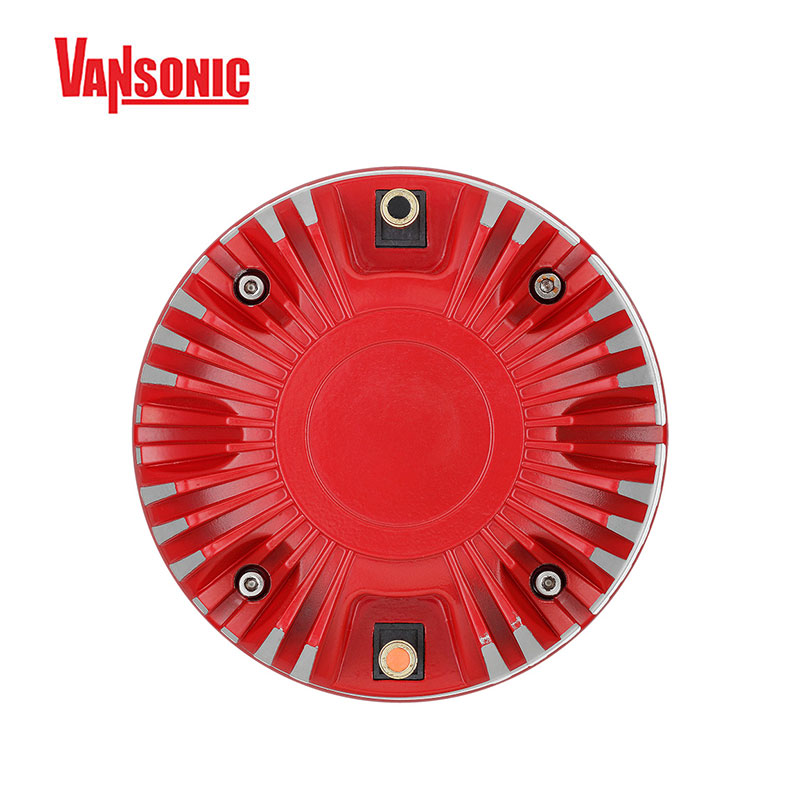

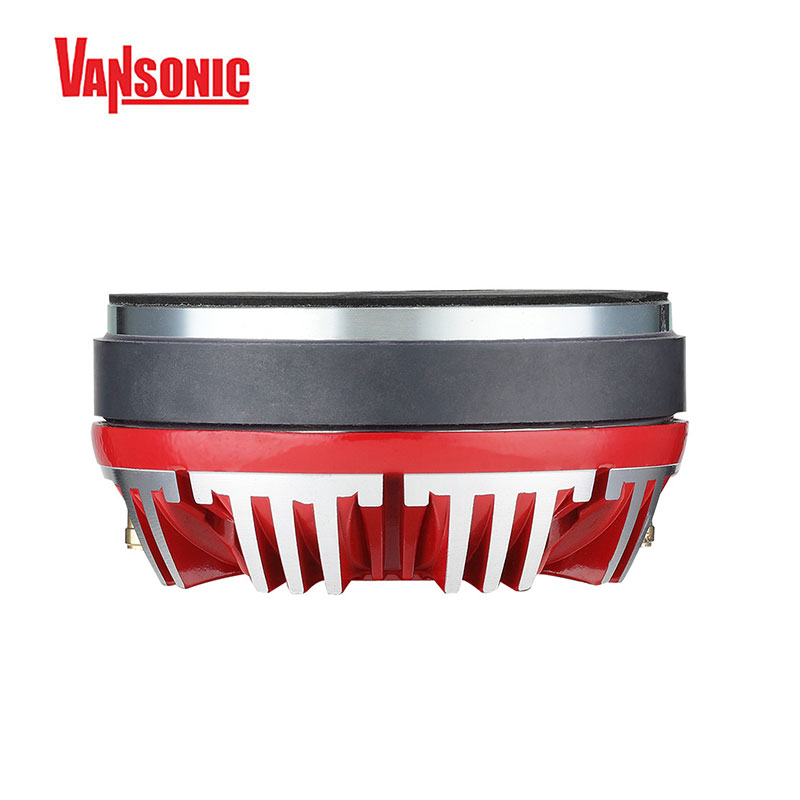

1.75 Inch Voice Coil Car Audio Driver

Vansonic is a large-scale 1.75 inch voice coil Car audio driver manufacturer and supplier in China. We have been specialized in car audio for 20years. Our products have a good price advantage and cover most of the European and American markets. We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

This Vansonic 1.75 inch voice coil Car audio driver is the latest invention of high-quality ISO9001, ISO14001, QCO80000, IATFA6949.The Vansonic subwoofers are each skillfully hand assembled and use only the best components. The PD series drives provides very high pressure levels with low distortion for better control wattage that ranges from 100 watts to an amazing stadium class 800 watts. These ultra durable titanium diaphragms will produce excellent highs for intelligible vocals.

Vansonic 1.75 inch voice coil Car audio driver Parameter (Specification)

ITEM	Throat Diameter	Mounting Type	Nominal Impedance	Sensitivity	Frequency range	Diaphragm Material	Voice Coil Diameter
PD-01A	1.0 inch	Bolt-on	8 Ohms	107dB	1.2-20KHz	Titanium	1.35 inch
PD-01B	1.0 inch	Bolt-on	8 Ohms	108dB	1.2-20KHz	Titanium	1.75 inch
PD-01C	1.0 inch	Bolt-on	8 Ohms	109dB	1.0-20KHz	Titanium	2.03 inch
PD-01D	2.0 inch	Bolt-on	8 Ohms	110dB	500-18KHz	Titanium	2.84 inch

Vansonic 1.75 inch voice coil Car audio driver Feature And Application

The PD series drives provides very high pressure levels with low distortion for better control wattage that ranges from 100 watts to an amazing stadium class 800 watts. These ultra durable titanium diaphragms will produce excellent highs for intelligible vocals. Each driver is deigned for serious music enthusiasts and will enhance any pro audio application that you have in mind.

Vansonic 1.75 inch voice coil Car audio driver Details

Item：PD-01A
Throat Diameter : 1.0 inch
Mounting Type : Bolt-on
Nominal Impedance : 8 Ohms
Sensitivity : 107Db
Frequency range: 1.2-20KHz
Diaphragm Material: Titanium
Voice Coil Diameter: 1.35 inch
